Simplified Clean Architecture Design Pattern for Unity
Simple Clean Architecture?
Simple Clean Architecture (SCA) is a software architecture based on the concept of Clean Architecture. Clean Architecture provides a great concept to keep our software clean and less coupled. However, if you make software by the strict guideline of Clean Architecture, your software project structure may be a bit redundant. (e.g., using Repository, Use input port, Data Access, … to access data)
SCA is simplified and ready-to-implement design pattern of Clean Architecture. You can see the similarity with MVP, MVVM design patterns. In SCA, we have 5 components (Entity, Gateway, Usecase, Presenter, View) defined in Clean Architecture. Each component should be less coupled and managed by Dependency Injection(DI). We also use Reactive Programming design pattern to communicate each component within less coupled dependency.
For the detail of Simple Clean Architecture, please refer to this article.
Components
SCA provides you good advantages if your Unity project has a huge codebase. We classify your code logic into 5 groups (Entity, Gateway, Usecase, Presenter, View). Let’s see each role.
- Entity
Entity is responsible for encapsulating the most basic business rules, including primitive objects and methods.
* Entity can’t inherit MonoBehaviour
* Entity can’t depend on Usecase, Gateway, Presenter, View - Usecase
Usecase manipulates Entities. Furthermore, Usecase can also achieve more complicated manipulation using Gateway.
* Usecase can depend on Gateway through its interface.
* Usecase can’t be dependent on View, Presenter
* Usecase can’t inherit MonoBehaviour
* Usecase may depend on other Usecase through its interface (but try to avoid as much as possible) - Gateway
Gateway is responsible for interaction with DB and external libraries.
* Gateway can’t inherit MonoBehaviour
* Gateway can’t depend on View, Presenter, Usecase
* Gateway may rely on other Gateways through interfaces (but try to avoid as much as possible) - Presenter
Presenter is responsible for interaction with the View.
* Presenter can depend on Usecase through its interface
* Presenter can’t dependent on View, Gateway
* Presenter can inherit MonoBehaviour
* Presenter may rely on other presenters through its interface (but try to avoid as much as possible) - View
View is responsible for manipulating the UI.
* View can depend on the Presenter through its interface
* View can’t depend on another View
* View can’t depend on Usecase, Gateway
* View can inherit MonoBehaviour

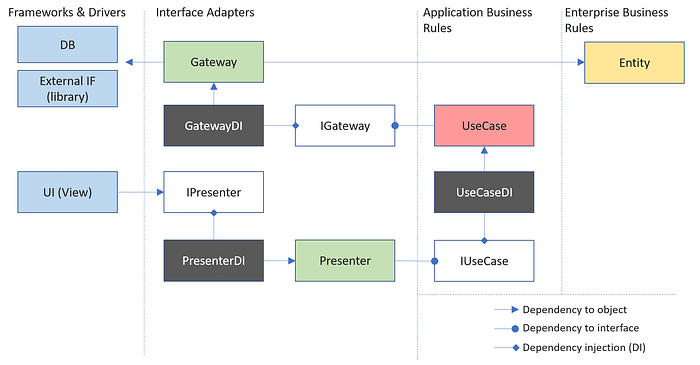

This diagram shows each component’s relationship.
Dependency Injection
If you make a loosely coupled software, you need to consider “how to resolve the dependency,” meaning who will create the instance. Dependency Injection(DI) in in charge of this functionality. Since DI is popular software design pattern, please search it if you want to more.
In this example, we are using Extenject for DI. For the detail usage of Extenject, please check their github: Extenject
Reactive Programming
In SCA, we use the concept of Reactive Programming to have each component communicate with each other. This approach can reverse the direction of dependency. In general (without SCA), internal logic pushes internal data to change to UI to update it. In that case, the internal logic class needs to know the UI class (dependency from inside to outside, or bidirectional dependency). This usual approach increases the coupling between classes. To solve this, we use reactive programing to have UI subscribe the internal logic from outside so that we can keep the direction of the dependency. The following diagram shows the flow of data.
In SCA implementation, we usually use UniRx to achieve such Reactive programming communication. For the detail usage of UniRx, please check their github: UniRx.
Example Scene
You can check an example Unity project of SCA in github;
